نحوه کار شارژر باتری
چه شارژری برای دستگاه شما مناسب است
یک شارژر خوب پیش نیازی است برای دوام و عملکرد خوب باتری، شارژر ها عموما بر اساس سرعت شارژشان دسته بندی میشوند. محصولات مصرفی عموما با شارژر های ارزان قیمتی که برای استفاده شخصی عملکرد خوبی دارند عرضه میشود.
در این مقاله به بیان برخی مفاهیم و پیش نیازها پرداخته خواهد شد. در ابتدا متداولترین مدلهای ریاضی موجود برای باتری لیتیوم-یون مطرح میشود، سپس یکی از تازه ترین پژوهشها در این حوزه که در گسترش سطح تکنولوژی حفاظت و مانیتورینگ باتری های لیتیومی ارائه شده، تشریح میشود.
در جدول زیر ویژگی های مختلف انواع باتری لیتیوم یون را به صورت مختصر میتوانید مطالعه بفرمایید.
اصطلاح لیتیوم یون به خانواده ای از باتری ها که شباهت هایی به هم دارند دلالت دارد، ولی میتوانند دارای فرمولاسیون متفاوتی باشند. لیتیوم کبالت، لیتیوم منگنز، نیکل منگنز اکسید و لیتیوم آلومینیوم در ظرفیت بالا و قابلیت جابجایی شبیه به هم هستند. لیتیوم فسفات و لیتیوم تایتانیت دارای ظرفیت و ولتاژ پایین تری هستند ولی طول عمر بسیار بالایی دارند که این باتری ها اغلب در وسائط نقلیه و یا به صورت ثابت در یک محل استفاده میشوند.
سیستم مدیریت باتری یا BMS به عنوان مغز یک پک باتری در نظر گرفته میشود. یک مداری است که با یک الگوریتم ترکیب شده که ولتاژ، جریان و دمای سلولهای یک پک باتری را نظارت میکند و عملکرد و ایمنی هر سلول را بصورت جداگانه در یک پک باتری تضمین میکند. همچنین مسئول تعادل در شارژ، اندازه گیری SOC و SOH سلول ها و بسیاری از عملکردهای مهم دیگر است.

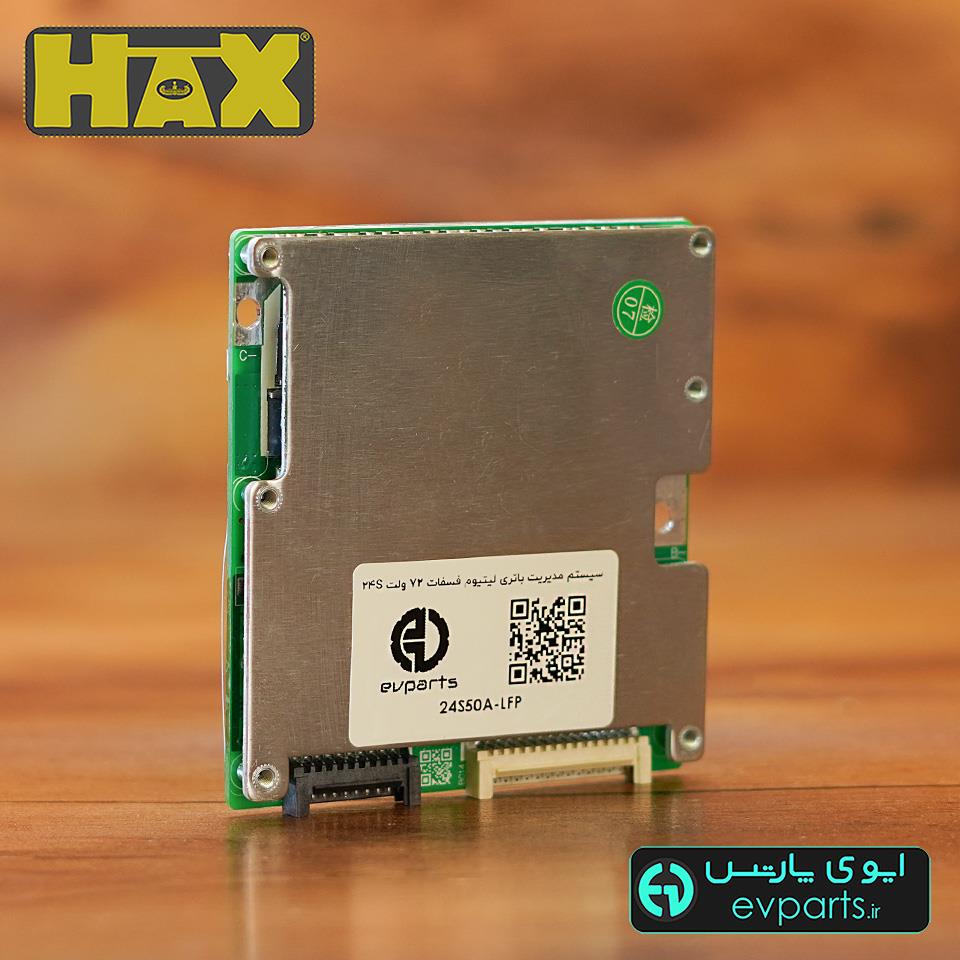

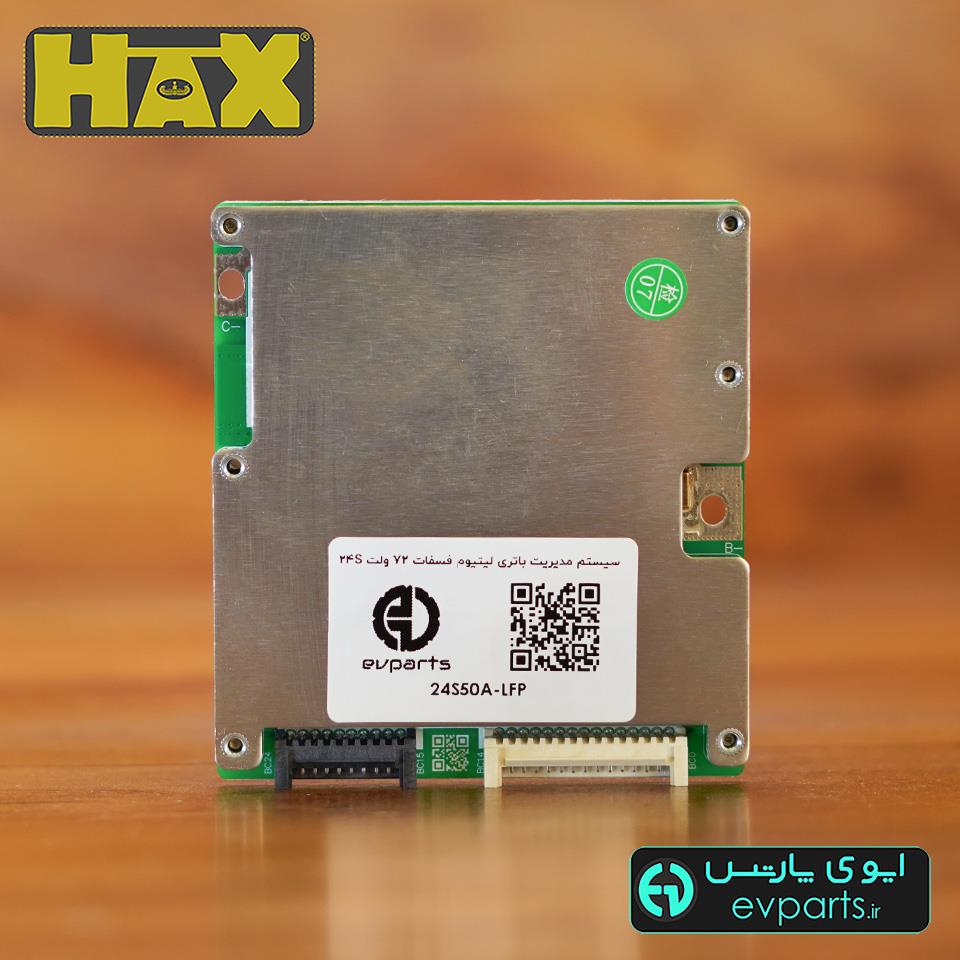

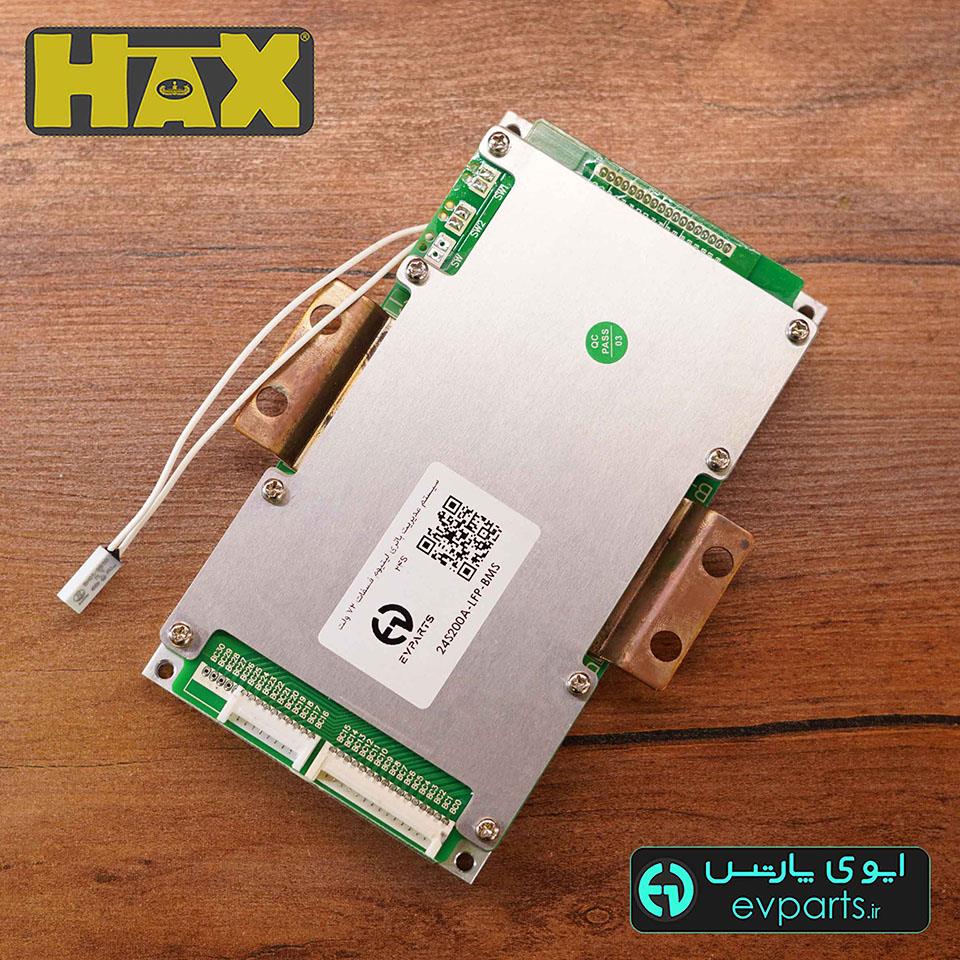

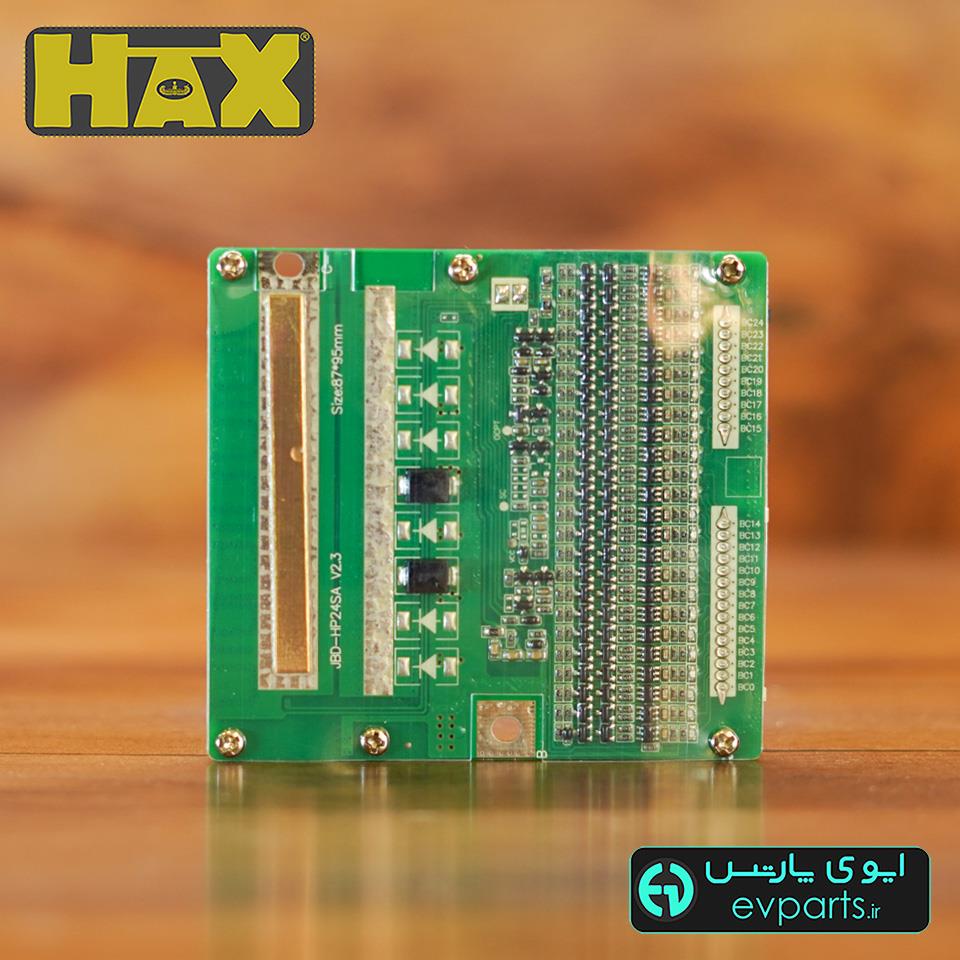

تعداد سری (S) | 24 |
ولتاژ نامی (V) | 76.8 |
ولتاژ شارژ (V) | 87.6 |
جریان پیوسته (A) | 200 |
نوع باتری | لیتیوم فسفات |
≥120A - 200A | |||
Discharge current | 120A | 150A | 200A |
Overdischarge current protection value | 3-4 Times | ||
The main circuit conducts internal resistance | <20mΩ | ||
Charge Current | 120A | 150A | 200A |
Charge voltage | LI-ION : The series of battery *4.2V | LIFEPO4 ; The series of battery *3.6V |
Overcharge protection | Overdischarge protection |
Overcharge detecting voltage: | Overcharge detecting voltage: |
Li-ion:4.25±0.05V Lifepo4:3.85±0.05V | Li-ion:2.75±0.1V Lifepo4:2.3±0.1V |
The delay detecting time: 1000mS | The delay detecting time: 100mS |
The recover voltage : | The recover voltage : |
Li-ion:4.15±0.05V Lifepo4:3.65±0.05V | Li-ion:3.0±0.05V Lifepo4:2.5±0.05V |
Balance protection | Overcurrent protection |
Detecting open voltage: | Overcurrent protection: 3-4 Times |
Li-ion : ≤4.18V Lifepo4:≤3.6V | |
Balance current : 20-35mA | The delay detecting time: 100mS |
Short circuit protection | Temperature protection (Built inside) |
Lead to conditions : External load short circuit | Discharge temperature protecture : 85±5 ℃ |
The delay detecting time: 150-600uS | Charge temperature protecture : 60±15℃ |
Restore conditions: | Work temperature : -20~80℃ |
Disconnect the load/Charging activation | |
self-consuming: | <80uA |
Size: | 160*116*25mm |
Port | Di script ion |
B- | Battery negative |
C- | Charging / Discharging the cathode |
BC20 | Connect to the 20th positive pole of the battery pack |
....... | ................ |
BC4 | Connect to the 4th positive pole of the battery pack |
BC3 | Connect to the 3rd positive pole of the battery pack |
BC2 | Connect to the 2nd positive pole of the battery pack |
BC1 | Connect to the 1st positive pole of the battery pack |
BC0 | Connect the first series of battery negative electrode, namely the total battery negative electrode |
Wiring sequence
When assembling the wiring, correctly weld the row wire to the cell, connect the B- of PCM to the total negative electrode of the cell, and insert the row wire into the pin holder of PCM.
(note: different connection modes with different string Numbers, and different connection modes with the same port)
