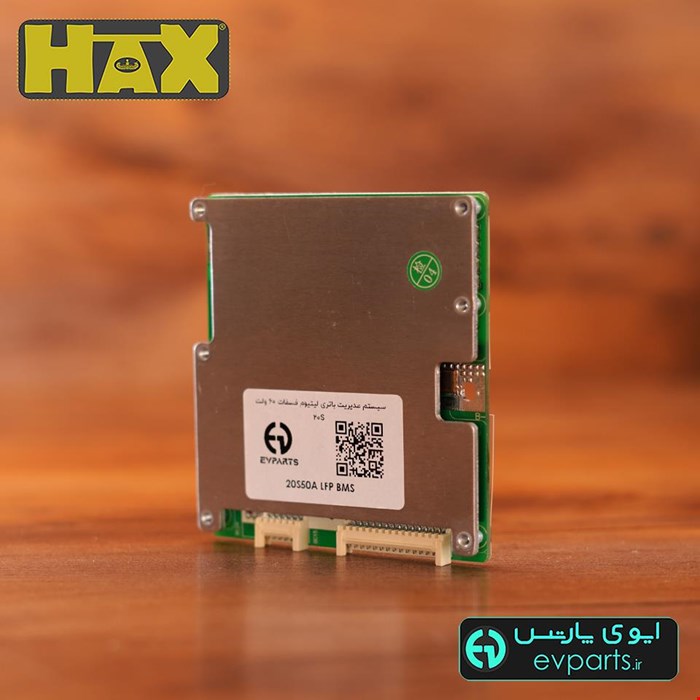

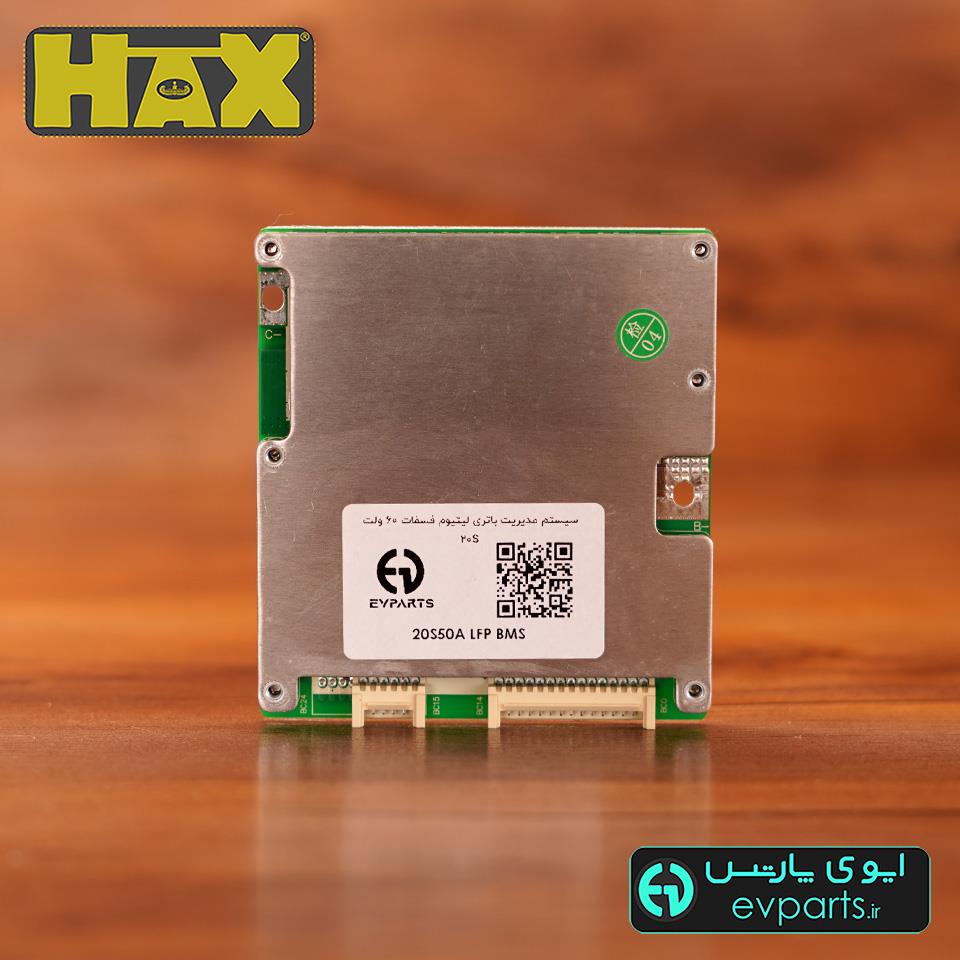

سیستم مدیریت باتری لیتیوم فسفات 20S30A
...
سیستم مدیریت باتری لیتیوم فسفات 20S30A
(4)
(0)
20S30A LFP BMS
رنگ و مدل کالا
20S30A LFP BMS
تعداد عدد
قیمت کالا
808,000 تومان
Specification

function

Test item

Specification



(Unit)

(Min)

(Type)

(Max)

charge current

Maximum continuous charging current





30

A

discharge current

Maximum continuous discharge current





30

A

Protective function

Work voltage

The range of voltage

42



73

V



Charge voltage

73

V

Overcharge protection

overcharge protection

3.720

3.750

3.800

V

Overcharge protection time delay

500

1000

1500

mS

Overcharge protection release voltage

3.50

3.600

3.70

V

Balance

cut-in voltage



3.6



V

equalizing current



25



mA



Overdischarge

Overdischarge protection voltage

2.0

2.100

2.200

V

Overdischarge protection delay time

40

80

120

mS

Overdischarge protection release voltage

2.200

2.300

2.400

V

Overrelease protection recovery condition

Disconnect load or charge



overcurrent

protection



Overcurrent 1 protection current value

70

100

130

A

Overcurrent 1 protection delay time

50



200

mS

Overcurrent protection recovery condition

Disconnect the load or charge

short-circuit

protection

Short circuit protection delay time



200



uS

Short circuit protectionrecovery

Disconnect the load

temperature

protection

temperature protection value



75



temperature release value



53



internal

resistance

Internal resistance of discharge circuit

/

10

20

mR

self-consuming

operating mode

/

20

50

uA



Size

95*87*10

mm



Protection function description



Overcharge protection : When the BMS detects that the voltage of any cell is higher than the overcharge protection value, the BMS starts to time immediately. When the time reaches the overcharge protection delay, the BMS turns off the charging MOS tube and stops charging. At this time, the battery cannot be charged.

Overcharge protection and recovery: after the overvoltage protection occurs on the BMS, the battery voltage will drop when the battery is standing or discharging. When the BMS detects that the voltage of each section is lower than the overcharge protection and recovery voltage, the BMS will output the signal and turn on the charging MOS tube. At this time, the battery can be charged.

Overdischarge protection and recovery: after the overdischarge protection occurs on the protection plate, the battery voltage keeps rising under the static or discharge state of the battery. When the protection plate detects that each section of voltage is higher than the overdischarge protection and recovery voltage, then disconnect the load or charge, the protection plate outputs the signal number, and turn on the discharge MOS tube. At this time, the battery voltage can be discharged.

Over-current protection: the battery in a quiet place or discharge state, the current is suddenly increased, when the protection board detects current reaches over-current protection value, then the board start timing, when the loop current duration after reaching over-current protection delay time, protective plate output signal shut off power MOS tube, load locking circuit work, at this time can't discharge.

Recovery of overcurrent protection: after the overcurrent protection occurs in the protection plate, the discharge MOS tube is turned off, and the current in the circuit becomes 0. At this time, the load or charge is disconnected, the protection plate outputs the signal, and the discharge MOS tube is turned on. At this time, the discharge can be carried out.



Wiring diagram

Port



B-

Battery negative

C-

Charging / Discharging the cathode

BC20

Connect to the 20th positive pole of the battery pack

.......

................

BC4

Connect to the 4th positive pole of the battery pack

BC3

Connect to the 3rd positive pole of the battery pack

BC2

Connect to the 2nd positive pole of the battery pack

BC1

Connect to the 1st positive pole of the battery pack

BC0

Connect the first series of battery negative electrode, namely the total battery negative electrode





Wiring sequence

When assembling the wiring, correctly weld the row wire to the cell, connect the B- of PCM to the total negative electrode of the cell, and insert the row wire into the pin holder of PCM.

(note: different connection modes with different string Numbers, and different connection modes with the same port)

مشخصات فنی
کد محصولBM011
تعداد سری (S)20
ولتاژ نامی (V)60
جریان پیوسته (A)30
نوع باتریلیتیوم فسفات
ابعاد - L*W*H) mm)10*87*95
